Iaito Carbon

Iaito Carbon
 Click on the magnifying glass to see the zoom
Iaito Carbon
Reference : O04BWCARB

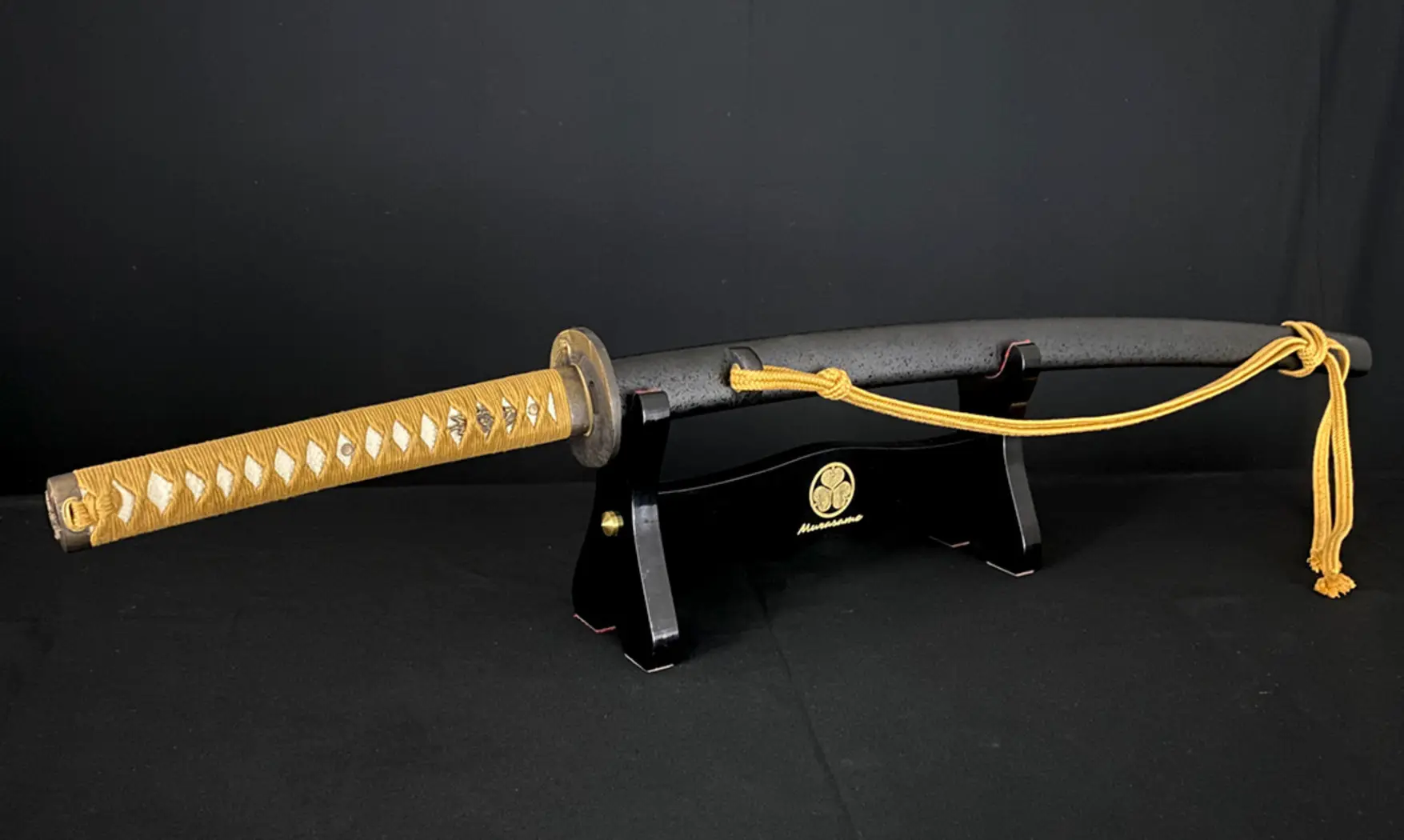

The Iaito "Celestial Crane" is an exceptional iaito, the result of Murasame's reflection on the concept of an ultra-light practice sword for the Iaido.

The materials traditionally used in the manufacture of Iaitos (steel, alloy, aluminum) do not allow to drop below a certain minimum weight (approximately 650 g).

The only suitable metal is aluminum, but it is brittle, soft and not very rigid.

Carbon fiber has proven to be a good idea because it combines many qualities: strength, rigidity and above all, very low weight. In addition, its color and texture add an extraordinary visual to this blade.
To give life to this Iaito Murasame used a very high quality carbon, the one used on the Airbus A 380.

- The company ReUse Composite Innovation was responsible for the realization of the carbon plate, the cutting of the blade and the realization of the groove.
- The grinding was entrusted to Tom Fleury Knives.
- All the clothing part (Tsuba, Fuchi, Kashira, Seppa, Habaki and Menuki) is the work of Curiositas Technologies.
- The Japanese Saber Workshop did the braiding work of the Tsuka, the fitting of the fittings, the tuning and the final tuning of the Iaito.
The Iaito "Celestial Crane" was presented for the first time at the Mondial Coutellia show in Thiers in May 2018.

It weighs 550 g, it is strong, lively and extremely manoeuvrable.
It can be further reduced as needed and down to around 420 g! A record!

Designed and produced entirely by hand in France for practitioners looking for an ultralight and unique Iaito.

Dimensions:
Nagasa (Blade length from the Tsuba): ~ 73 cm.
Sori (Curvature): about 2cm.
Moto-Kasane (Base thickness): approximately 7.8 mm.
Moto-Haba (Width at the base): approximately 32.1 mm.
Balance point (measured from Habaki): ~ 6 cm.
Fuchi-Kashira (Knob): Silver with polished brass pattern.

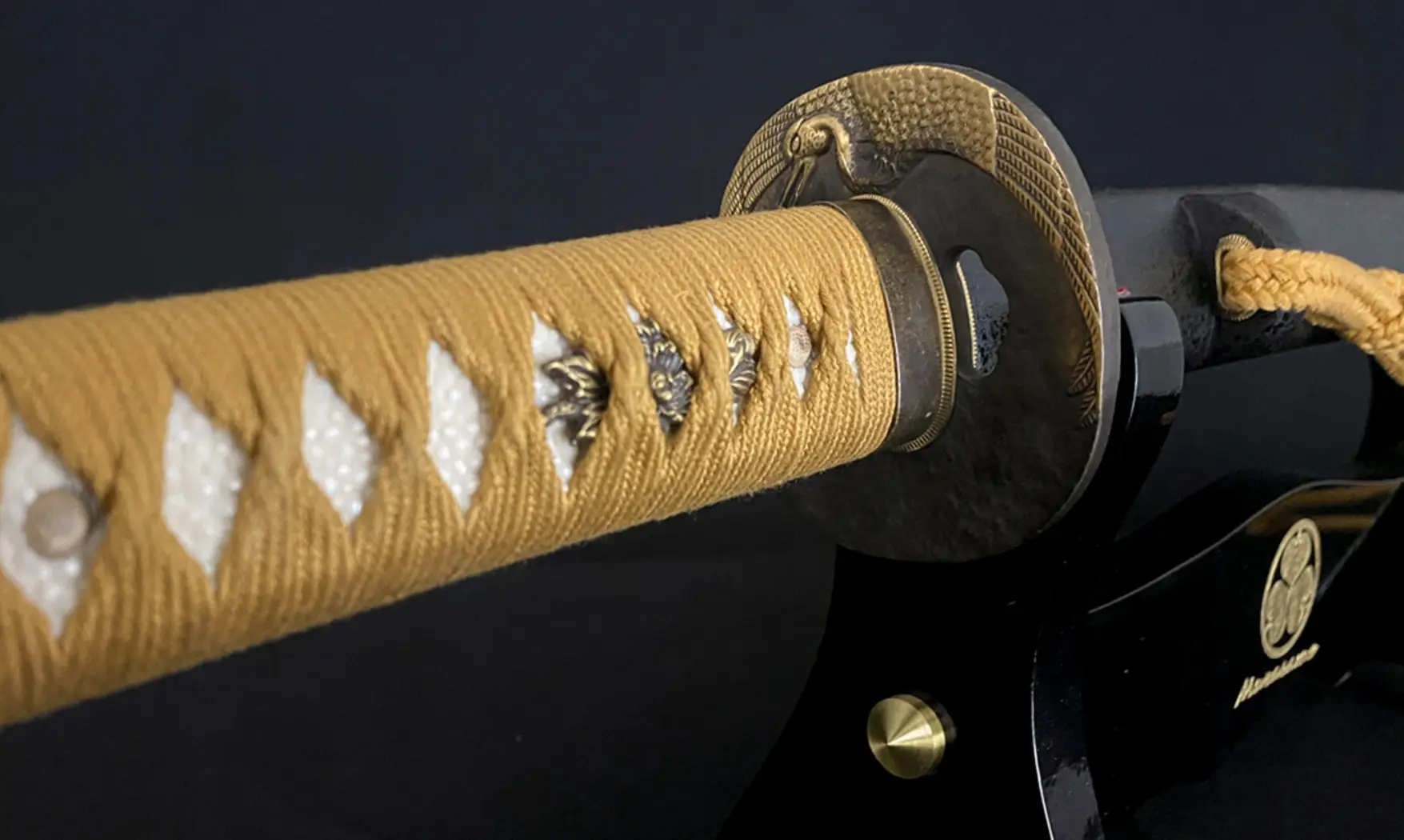

Tsuka (Handle): Wood, suitable for silk. Length 27.5 cm
Tsuka-ito (Fabric around handle): premium Japanese cotton fitted.
Same: Real, white ray skin.
2 Menuki: Old silver and brass. One on each side, mounted in the traditional way.
Habaki: aged silver brass
Seppa: aged silver brass
2 Mekugi: Bamboo wood, Assembly according to traditional methods. The 2 mekugi-ana are drilled diagonally and conically in the tang. The mekugi are attached in opposite ways on each side.

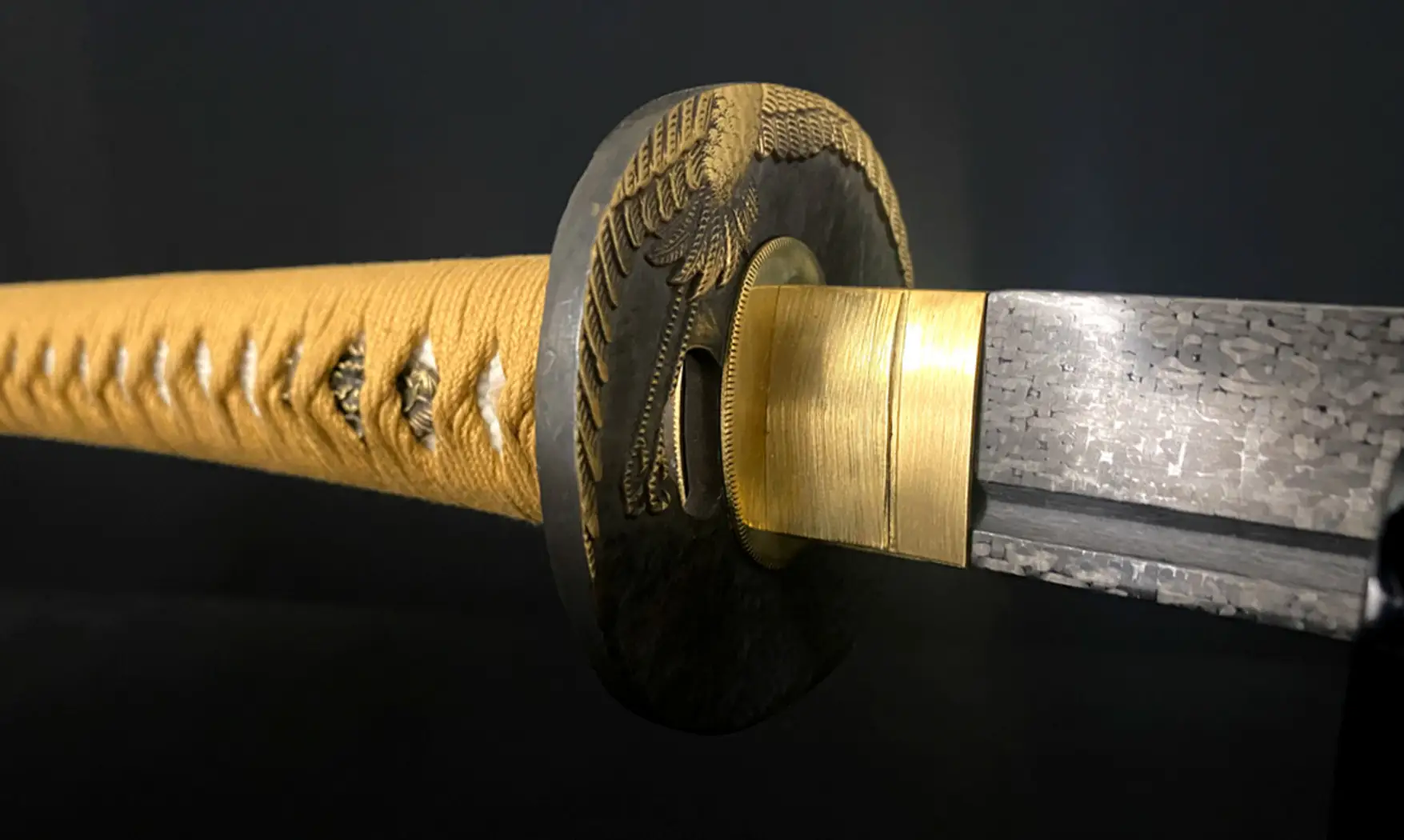

Tsuba (Guard): Diameter 8 cm thickness 6.7 cm. aged silver brass
Saya (Scabbard): Selected white wood. Curved according to the Sori of the blade. Saya with diamond-shaped opening showing the carbon blade.
Sageo: Japanese cotton superior quality.
550 gr. without Saya.
780 gr. with Saya

Accessories included:
- Japan protective cover.
- Delivered in a transport case with a black lacquered support.

————————————————————————————————————————————

IMPORTANT

CATEGORY D WEAPON - SALE TO MINORS FORBIDDEN
French law requires us to verify the majority of the customer for the sale of a category D weapon.

Please send us a photocopy of your identity document using the order form that you will receive by email following your purchase.
You can also send it to us by post or email: contact@katanas-samurai.com.

Order with payment obligation (Exchange or refund possible within 14 days), details in our general conditions of sale in the "Customers" section at the bottom of the page.

Delivery time: Within 5-7 days for our items in stock, maximum 3 weeks for items made to order, 10 to 14 weeks for our custom katanas and iaitos.
If you want a specific delivery date, please let us know before ordering. We strive to send your order as soon as possible according to the productions. Delivery times are indicative and may vary.
